A curbless shower is the hardest shower to build and the best-looking one when it's done right. The challenge: how do you get the shower floor lower than the bathroom floor so water drains in instead of flooding out, without building a raised platform that defeats the whole purpose of being curbless? The KERDI-SHOWER-TT (thin-profile tray) solves this. It's the same pre-sloped EPS foam as the standard KERDI-SHOWER-T tray, but with a deliberately reduced perimeter height — designed specifically so you can build a zero-threshold shower that drains properly without complicated custom work.

What Makes This Different from the Standard Tray

The standard KERDI-SHOWER-T tray has a raised perimeter that creates a natural curb height difference. That's useful for a traditional shower with a dam, but it works against you in a curbless design. The KERDI-SHOWER-TT has a lower perimeter profile so your installation height is minimized — making it realistic to install the shower floor at the same level (or just slightly below) the adjacent bathroom floor with proper slope.

Available Sizes

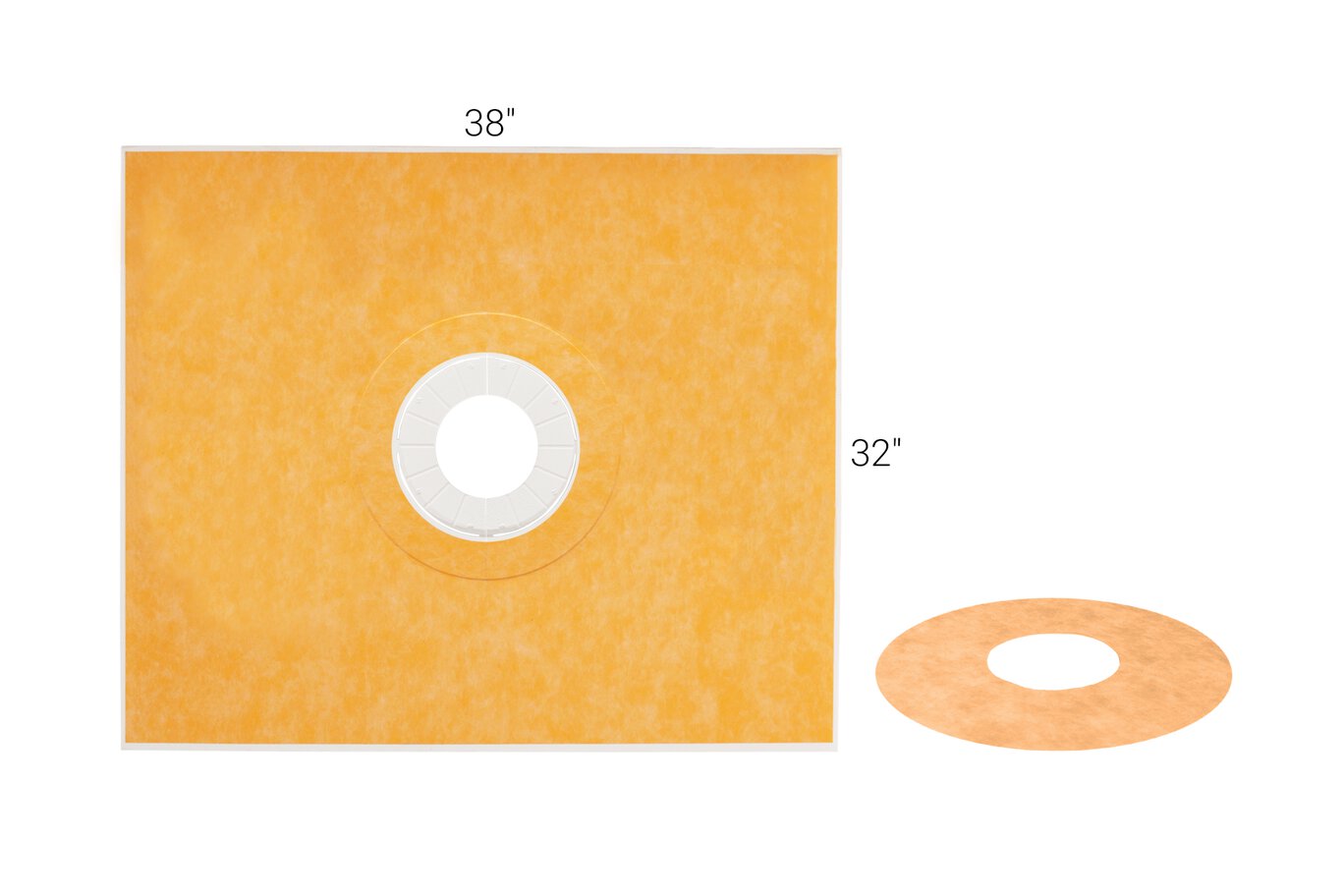

• 32" × 38" (81 × 97 cm)

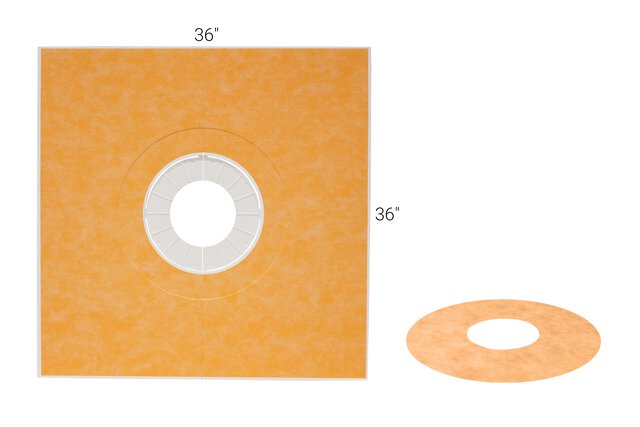

• 36" × 36" (91 × 91 cm)
• 38" × 38" (97 × 97 cm)
• 36" × 48" (91 × 122 cm)

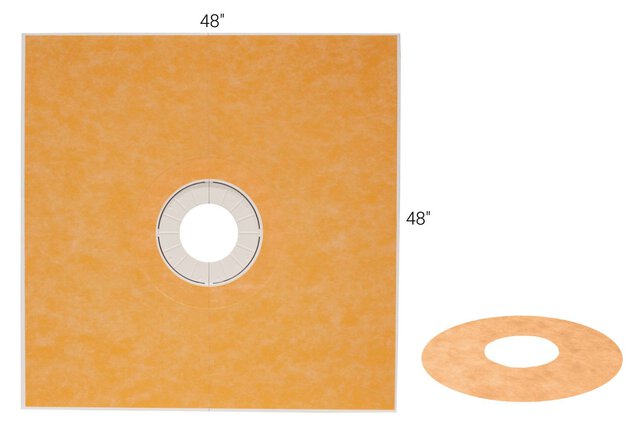

• 48" × 48" (122 × 122 cm)

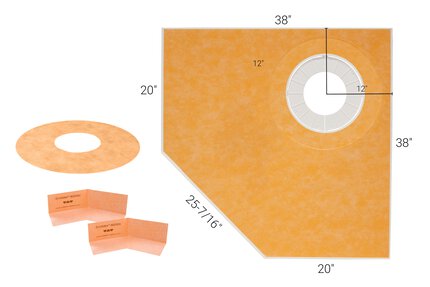

• 38" × 38" Neo-Angle (off-center drain — 12" from both 38" sides)

Installation Notes

• Bond to substrate with Schluter ALL-SET (wood subfloor) or SET (concrete slab)
• The reduced perimeter height means the adjacent bathroom floor must be carefully leveled to meet the tray edge — plan the height relationship between tray and bathroom floor in advance
• A Schluter SCHIENE or DILEX-AHK transition profile at the shower entry manages the floor-to-shower junction cleanly
• Apply KERDI-BAND at all floor/wall transitions and at the shower entry threshold transition
• Tile immediately after setting tray — no cure time required before tiling

Pro Tips

• A proper curbless shower requires planning at the rough-in stage. The drain needs to be lower than the bathroom floor — typically the shower floor is set 1/2" to 3/4" lower than the adjacent tile. Do this math before framing and plumbing are done, not after.
• Use a linear drain tray (KERDI-SHOWER-LT) if you want large-format tile. The TT tray uses a center drain, which requires a four-way slope. For 12×24" or larger tiles, the linear drain with single-plane slope is much cleaner.
• The shower entry needs a defined transition. Without a curb to stop water, the slope of the shower floor and the entry threshold profile do the work. A SCHLUTER-DILEX-AHK cove profile at the entry gives water a clear path inward and protects the tile edge at the threshold.
• Frameless glass is the natural partner. Curbless showers look best with frameless glass — no curb, no frame, just glass and tile. Plan the glass rough opening around your tray size and the transition profile thickness.

Who Should Buy This

Anyone building an accessible, barrier-free shower — for aging-in-place design, wheelchair access, or simply the clean modern aesthetic of a walk-in shower with no step-over. Increasingly the standard choice in master bathroom renovations, and required for full ADA/accessibility compliance in commercial settings.

Complete your system: KERDI-DRAIN body + Classic 4" grate, KERDI membrane for walls, KERDI-BAND, Schluter ALL-SET or SET mortar, DILEX-AHK or SCHIENE profile for the shower entry transition.
