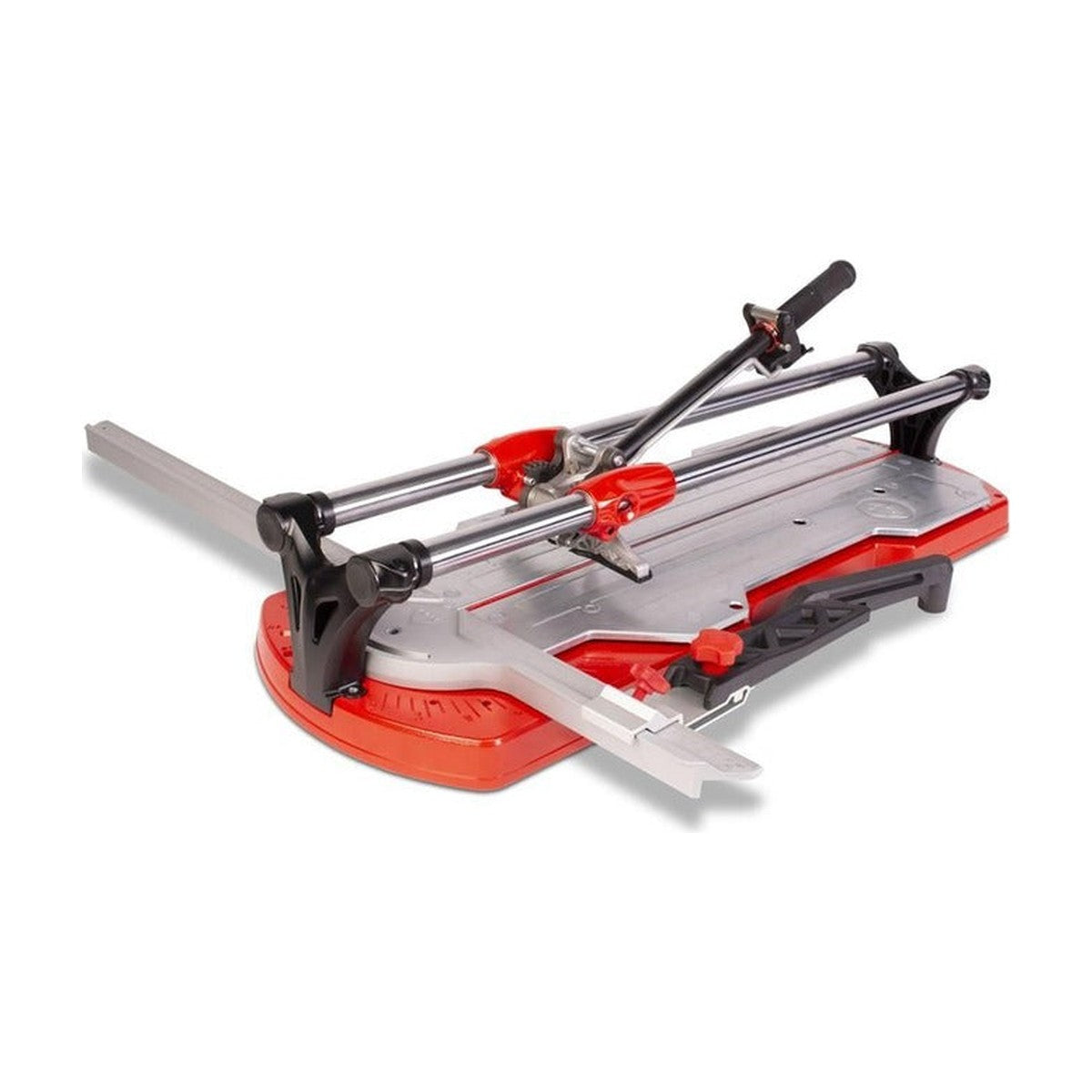

The Rubi TX-710 MAX is a professional manual tile cutter built for intensive cutting of all types of ceramic and porcelain tile, with a 28" (710 mm) cutting length and a 20" diagonal capacity. Its high-performance multipoint breaker delivers up to 1,200 kg (2,646 lb) of separating power, while the rotating square enables quick, accurate angular cuts from 0° to 45°. Robust 30 mm tubular steel guides with self-lubricated aluminum slides and galvanized steel floating tables keep cuts stable and precise even on large-format and extruded stoneware tiles. Ships with a carrying case, two scoring cords (8 mm and 22 mm EXTREME), a lateral stop, and two additional side support arms for handling large pieces.

Key features

• 28" (710 mm) cutting length with a 20" (500 mm) diagonal cutting capacity for large-format tile
• High-performance multipoint breaker delivers up to 1,200 kg (2,646 lb) of separation power for porcelain and extruded stoneware
• Rotating square for fast, accurate angular cuts from 0° to 45°
• Cuts tile from 3 to 21 mm thick (up to 19 mm with the anti-marking protector); one-handed ratchet-and-trigger separator
• 30 mm tubular steel guides with self-lubricated aluminum slides and galvanized steel floating tables for stability
• Includes carrying case, two scoring cords (8 mm and 22 mm EXTREME), lateral stop, and two side support arms; compatible with the full RUBI PLUS scoring wheel range

Specifications

• Cutting Length: 28" (710 mm)
• Diagonal Cutting Length: 20" (500 mm)
• Cutting Thickness: 3-21 mm (up to 19 mm with protector)
• Separation Power: 1,200 kg (2,646 lb)
• Angular Cuts: 0° to 45°
• Guides: 30 mm tubular steel with aluminum slides
• Weight (with case): 13.3 kg (29.3 lb)
• Included: Carrying case, 8 mm & 22 mm EXTREME scoring cords, lateral stop, 2 side support arms
• Reference / SKU: 17910
• EAN: 8413797179101
