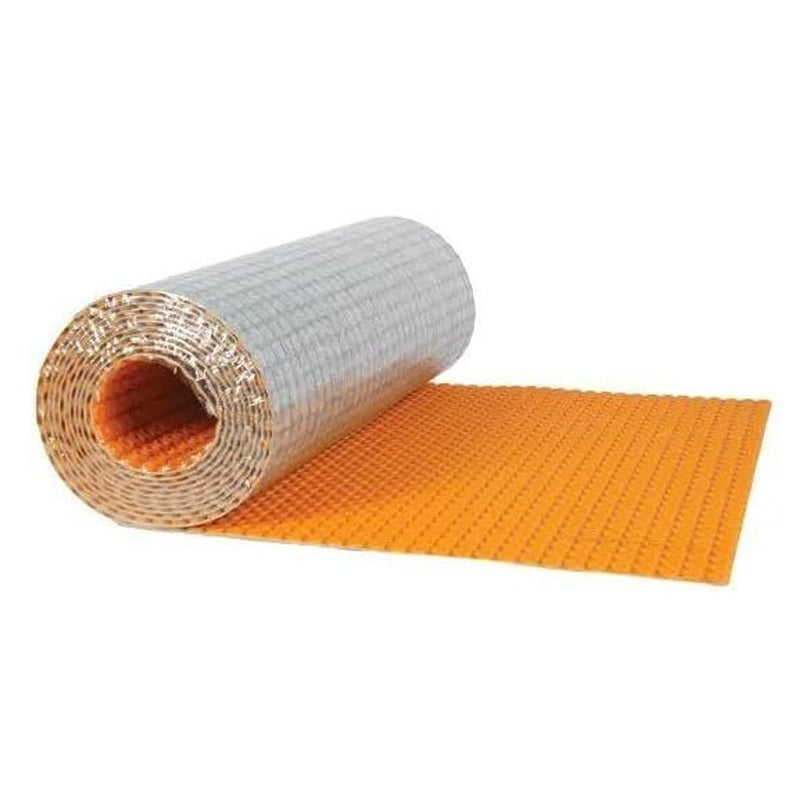

Schluter® DITRA-HEAT-DUO-PS ROLL 3'3" X 33' = 108 SF

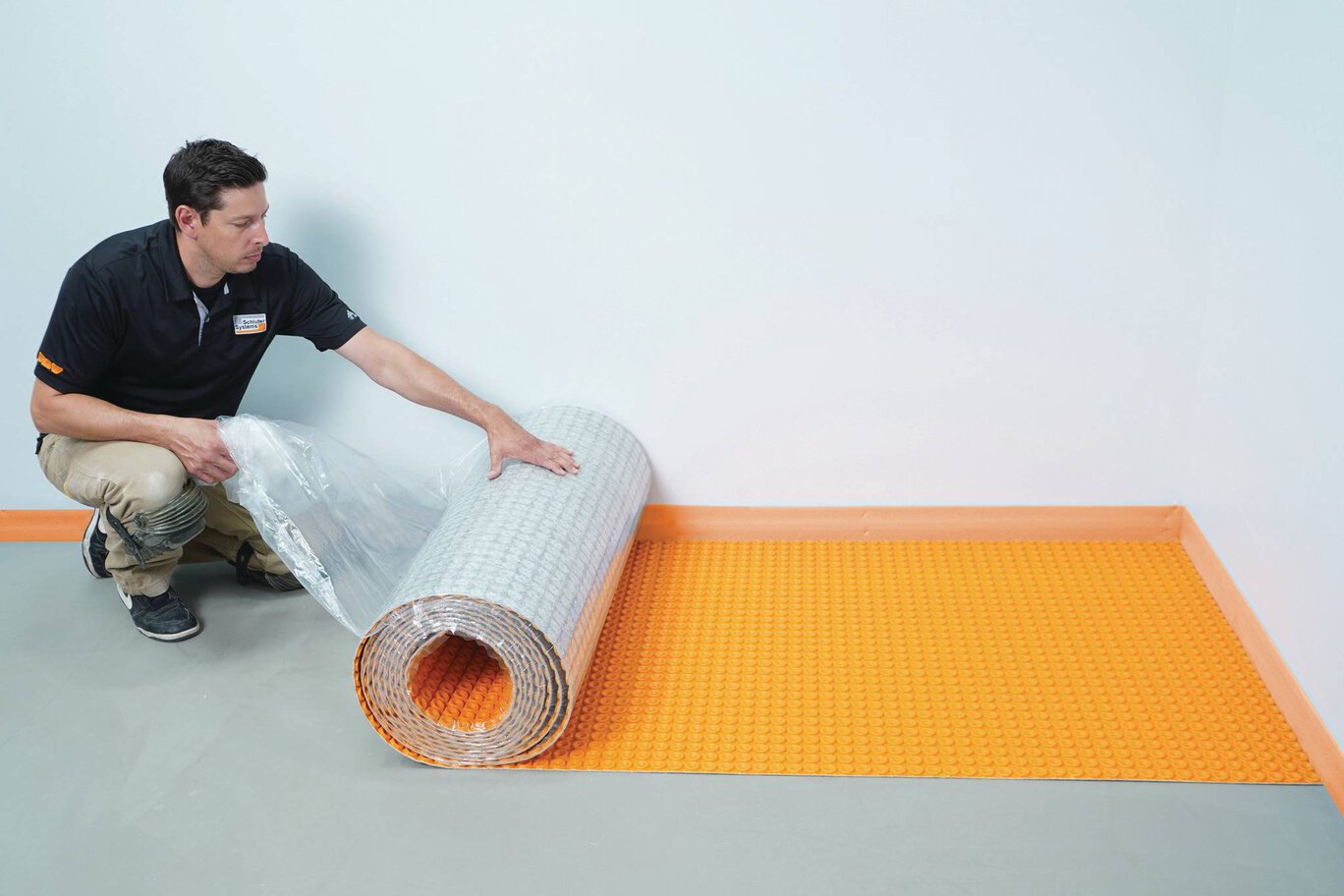

- Simply remove the transparent release film from the fleece side of the membrane to expose the layer of adhesive, and embed into substrate
- No thin-set required to install membrane means a faster and easier installation
- The membrane can easily be repositioned until pressure is exerted
- Features sound control and thermal break
- Reduces impact sound transmission through floor-ceiling assemblies, making it ideal for multi-story construction
Description
Description
DITRA-HEAT-DUO-PS combines all the benefits of the DUO membrane — uncoupling, sound control, thermal break, and heated cable channels — with a peel-and-stick backing that bonds directly to concrete. No thin-set, no trowel, no curing wait.
- 108 sq ft roll — peel, press onto clean concrete, and snap DITRA-HEAT cables directly into the stud channels
- Integrated sound control layer reduces impact noise between floors — important in condos, above-garage installations, and multi-storey homes
- Thermal break layer keeps heat directed upward into the tile instead of dissipating into the slab below
Pro tip: The DUO-PS is the best membrane choice for heated floors over unheated concrete spaces (basements, garages). You get sound dampening, thermal efficiency, and fast installation in one product.
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Specifications
Identity
How DITRA-HEAT Works in 4 Steps
1. Install the membrane
Bond DITRA-HEAT to your substrate with unmodified thinset. Works over concrete, plywood, or OSB subfloors.
2. Snap in the cable
Run the DITRA-HEAT-E-HK cable between the studs at 3″ spacing. No mesh, no staples, no plywood overlay.
3. Tile right over it
Apply thinset and set tile, stone, or LVT directly on the studs. The membrane stays as your waterproof, uncoupled layer.
4. Set your thermostat
Wire the included floor sensor to any DITRA-HEAT thermostat — basic, touchscreen, or WiFi smart — and you’re heating.

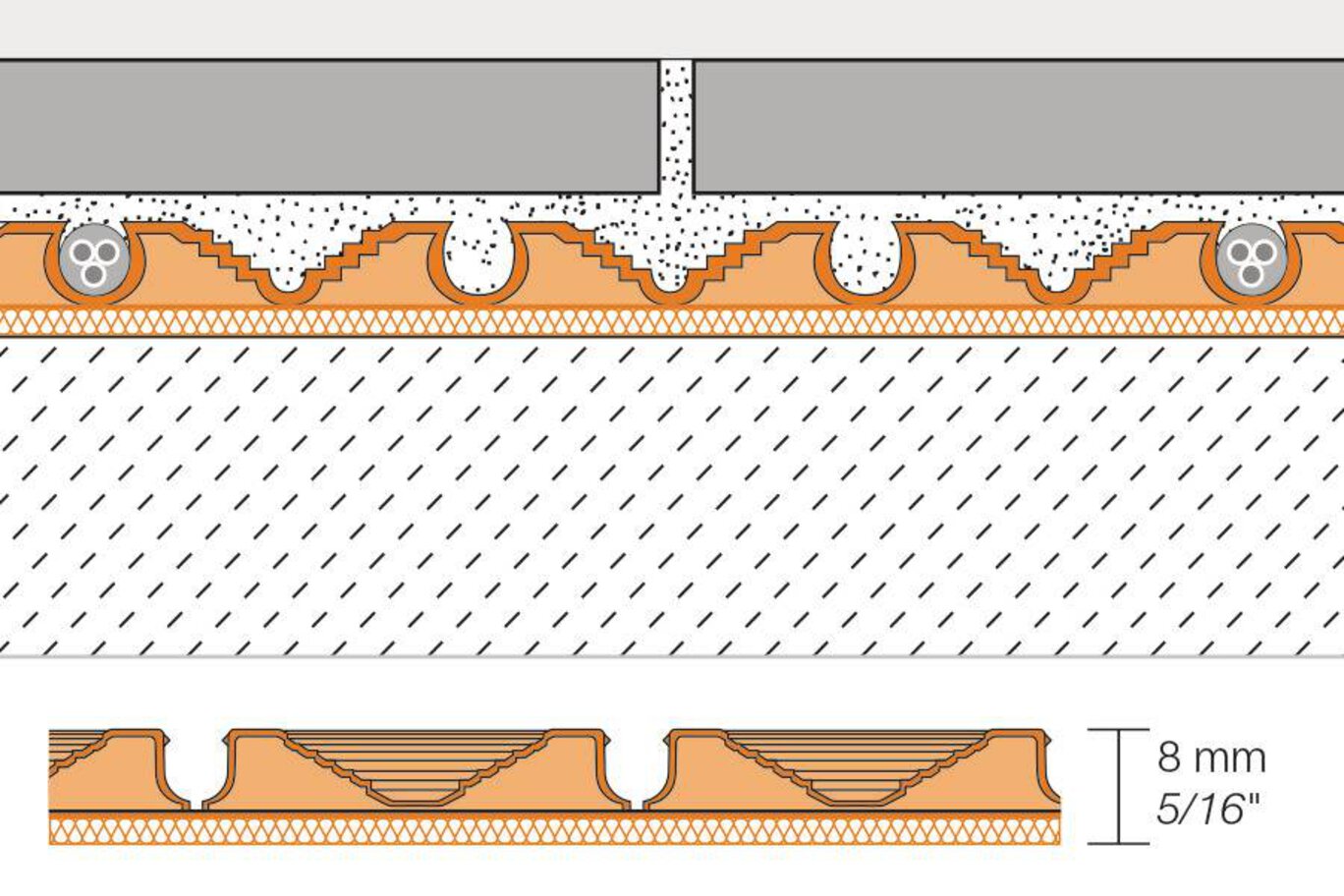

Engineered Layer by Layer
