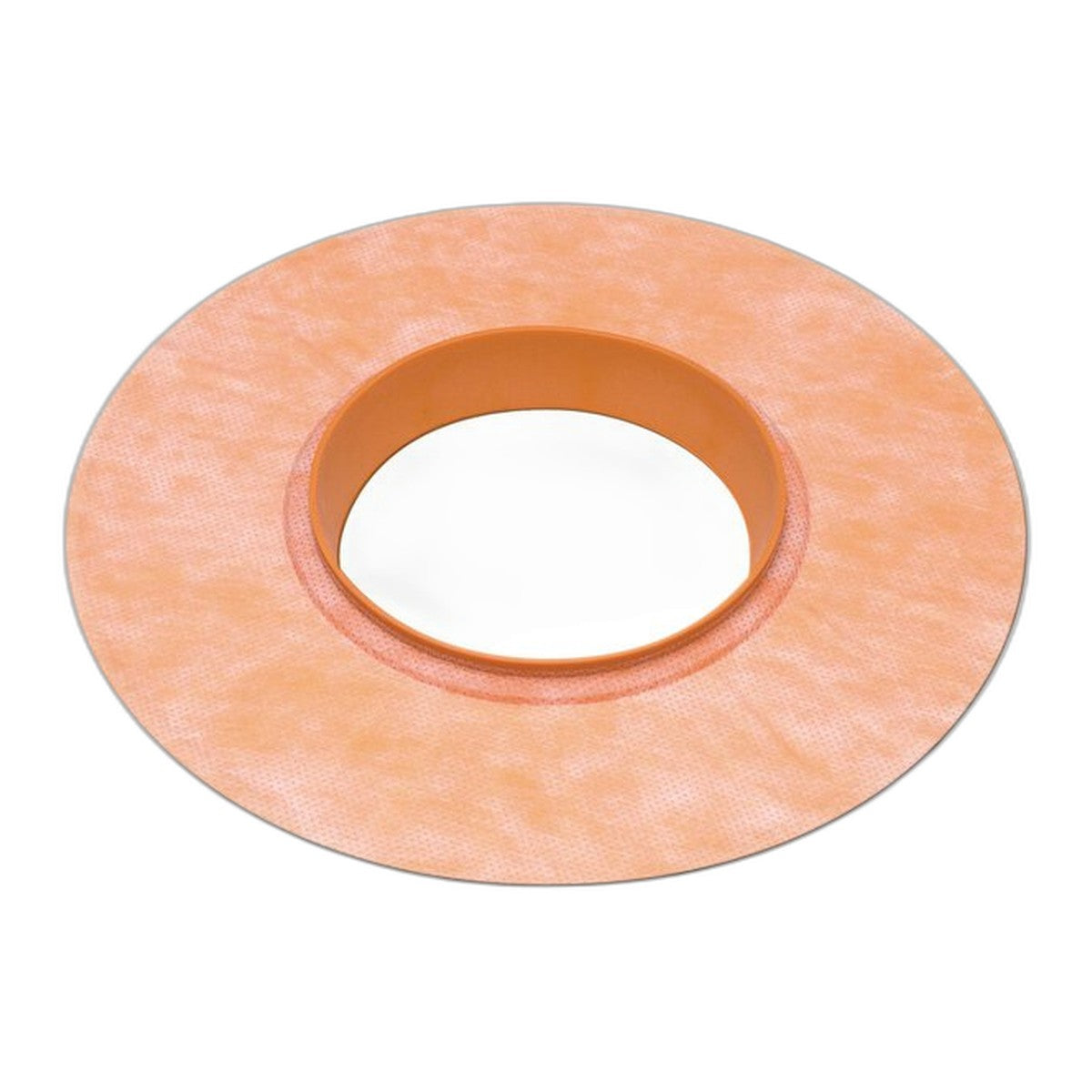

Schluter® KERDI-SEAL Mixing Valve Seal 4-1/2"

The mixing valve is one of the most complex waterproofing challenges in a tiled shower — a large opening cut through the wall for a fitting that needs to move freely for servicing, while also sitting behind a waterproof barrier. KERDI-SEAL-MV solves this specifically: a prefabricated waterproofing seal with a rubber gasket designed to fit around the mixing valve body and integrate into the KERDI waterproofing system.

Like the pipe seal version (KERDI-SEAL-PS), this seal has an over-molded rubber gasket that conforms to the valve body and a fleece-covered bonding flange that embeds into thin-set mortar to bond with the surrounding KERDI membrane. The combination creates a continuous waterproof envelope around the most-used penetration in the shower wall.

Why this matters

Most shower leaks behind walls originate at the valve or pipe penetrations — not at the tile or grout joints. Traditional cement board and liquid membrane installations rarely seal these points properly. KERDI-SEAL-MV is the purpose-built fix that the Schluter system warranty requires. Skip it and the warranty doesn't apply at this junction.

Installation

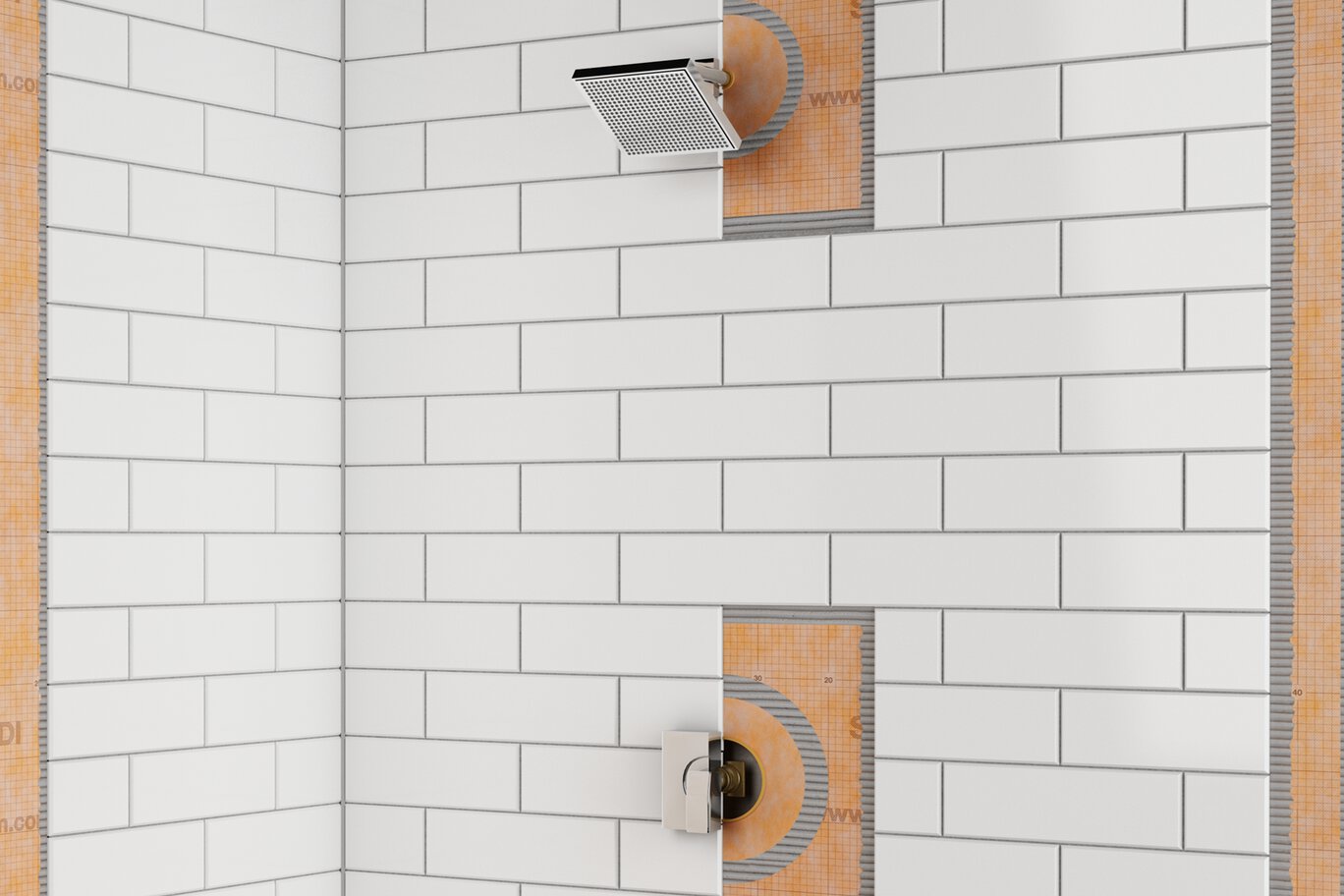

Press the fleece bonding flange into thin-set mortar on the wall substrate. The rubber gasket fits over and around the mixing valve body. Overlap the KERDI wall membrane onto the bonding flange with a minimum 2" overlap on all sides. The result is a waterproof connection at the valve that's part of the bonded membrane system — not a caulk bead that will need redoing every few years.

Key specs

• Designed specifically for mixing valve body penetrations in shower walls
• Size: 4-1/2" — fits standard mixing valve cutout dimensions
• Over-molded rubber gasket for valve body seal
• Fleece-covered bonding flange for mortar anchoring and membrane overlap
• Compatible with KERDI, KERDI-BOARD, and similar bonded membrane assemblies
• 10-year limited warranty (as part of Schluter Shower System)

Pro Tip

Mark the valve rough-in stub location before applying any waterproofing — you don't want to be cutting through an already-applied membrane. Set the KERDI-SEAL-MV in mortar first, let it cure, then lap the KERDI membrane over the flange. Allow the mortar to cure fully before trimming and proceeding with tile. Rushing this joint to save a few hours is how showers develop slow leaks behind walls that you don't discover for years.

Pairs with

• KERDI waterproofing membrane
• KERDI-BOARD building panels (for shower wall substrate)
• KERDI-SEAL-PS pipe seal (for showerhead and body spray penetrations — sold separately)
• KERDI-FIX bonding adhesive (for supplemental sealing around complex valve configurations)
