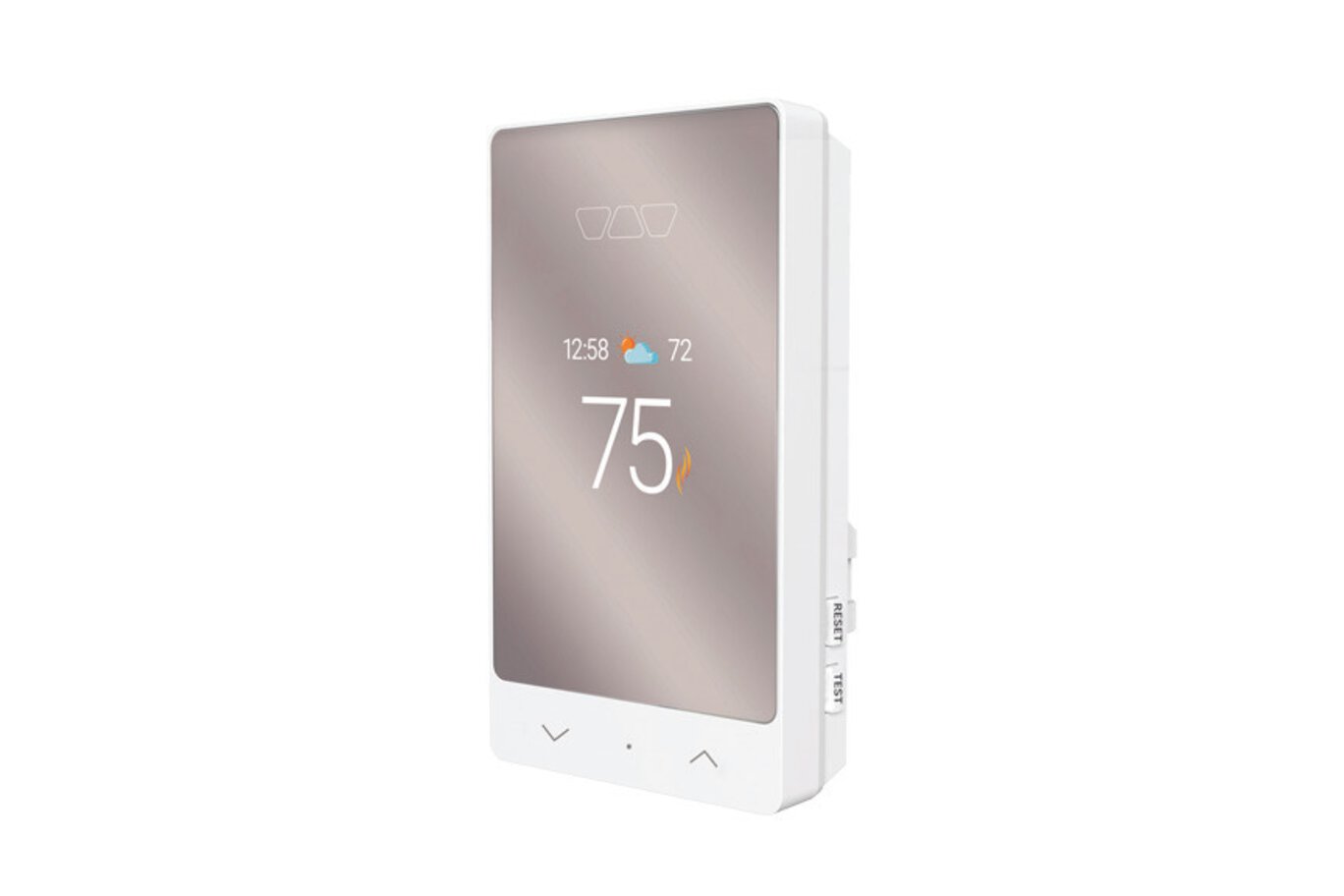

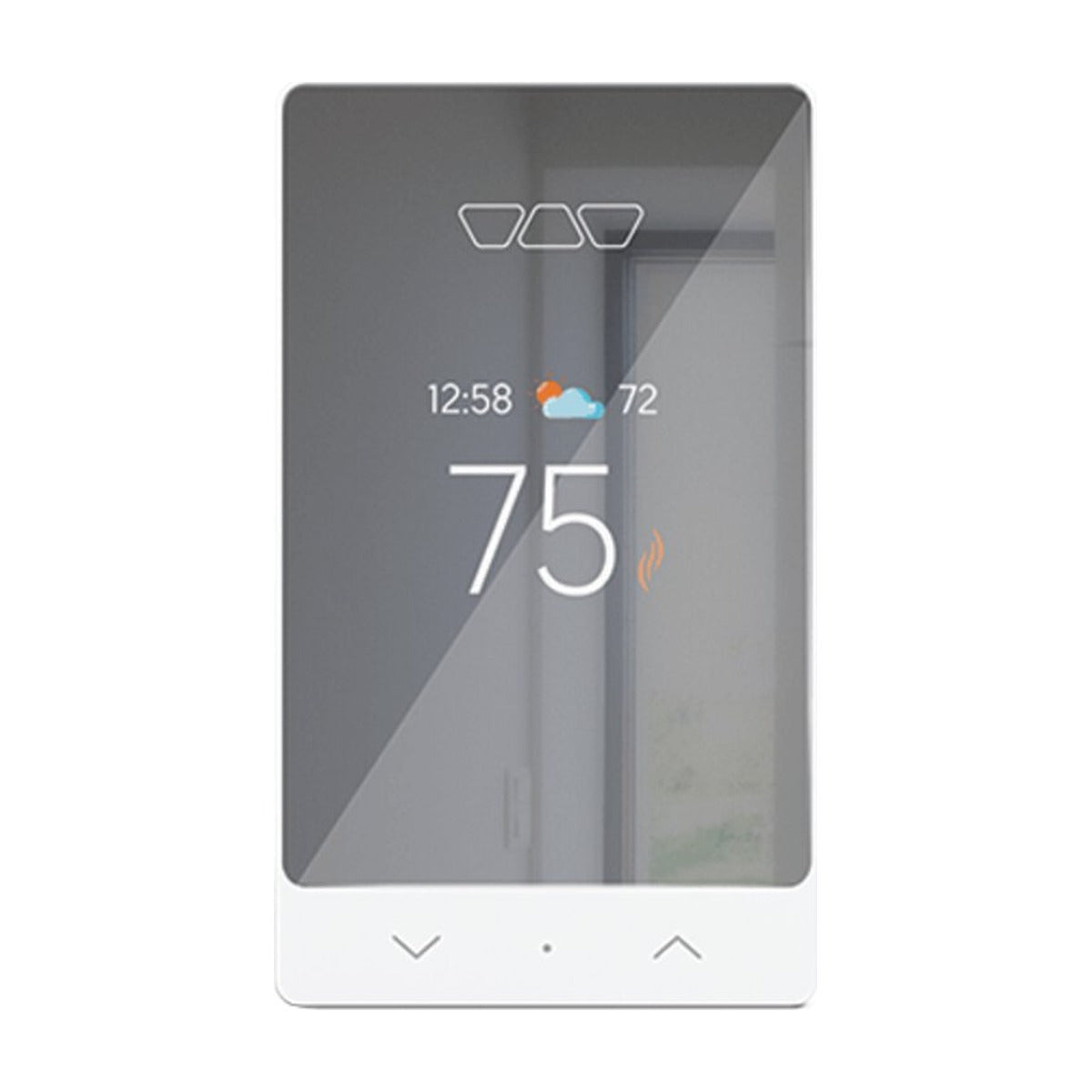

Schluter® DITRA-HEAT-E-RS1 SMART THERMOSTAT
- Floor sensor included, ambient limit protection, & easy install
- Geofencing, Scenes for multiple thermostats, & energy-saving modes

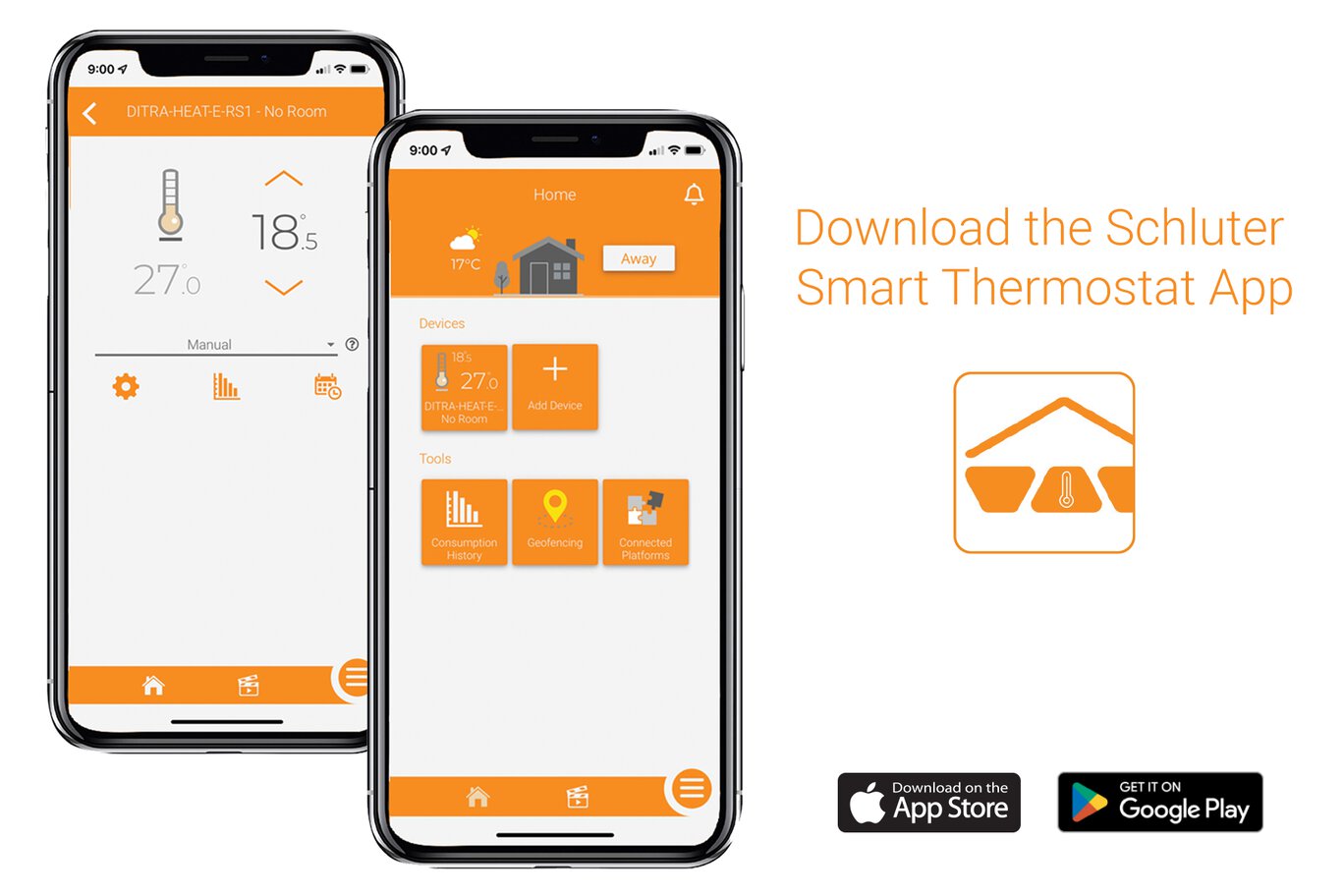

- Remote control & scheduling via Schluter Smart Thermostat app
Description
Description
The RS1 is Schluter's top-tier smart thermostat for heated floors — full WiFi with Google Home and Alexa integration, geofencing, and a premium mirror-finish touchscreen. This is the one for homeowners who want their heated floor woven into the smart home.
- Works with 120V and 240V systems up to 15A — built-in Class A GFCI, floor sensor included with your heating cable, supports ambient temperature limiting for LVT and laminate
- App-based scheduling with geofencing — the floor warms up automatically when you're heading home, no manual scheduling needed

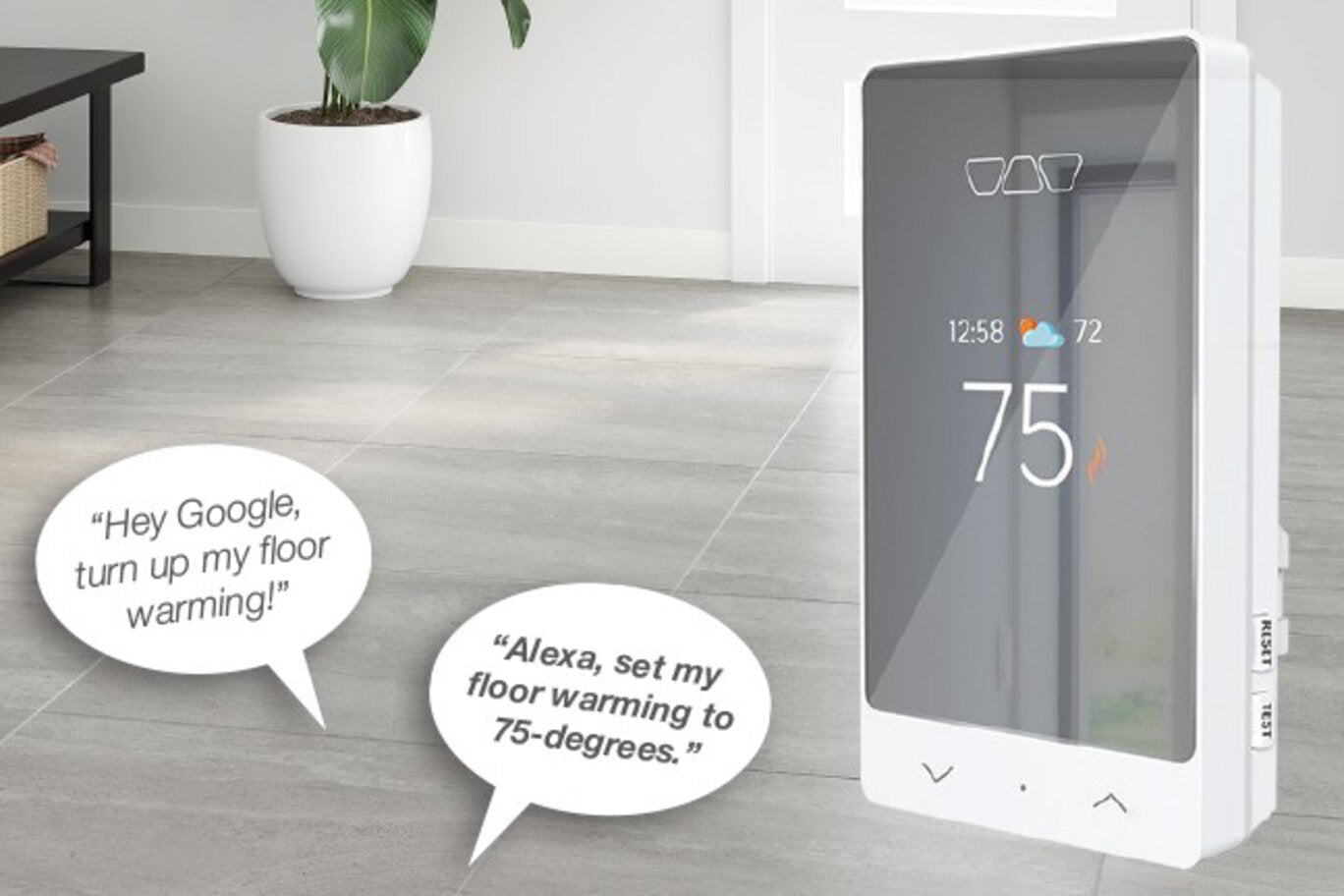

- Google Home and Amazon Alexa compatible — voice control, remote monitoring, and integration with home automation routines
Pro tip: If you're just heating one bathroom and don't need smart home integration, the E-RT programmable thermostat does the same core job for less money. The RS1 earns its price in multi-zone homes and vacation properties.
Couldn't load pickup availability
Get $20 off when you spend $1,000 or more! Learn more
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Thermostat Comparison Guide
Choose the right control for your heated floor system
DITRA-HEAT-E-R
Non-programmable basic temperature control
- 7-day programmable schedule
- Floor & built-in air sensors
- GFCI ground fault protection
- 120V & 240V compatible
- 15A max load
- Touchscreen display
- WiFi & app control
- Voice assistant support
- Energy usage reports
DITRA-HEAT-E-RT
7-day programmable touchscreen
- 7-day programmable schedule
- Floor & built-in air sensors
- GFCI ground fault protection
- 120V & 240V compatible
- 15A max load
- Touchscreen display
- WiFi & app control
- Voice assistant support
- Energy usage reports
DITRA-HEAT-E-WiFi
WiFi programmable touchscreen + app
- 7-day programmable schedule
- Floor & built-in air sensors
- GFCI ground fault protection
- 120V & 240V compatible
- 15A max load
- Touchscreen display
- WiFi & app control
- Voice assistant support
- Energy usage reports
DITRA-HEAT-E-RS1
WiFi-enabled smart thermostat with app control
- 7-day programmable schedule
- Floor & built-in air sensors
- GFCI ground fault protection
- 120V & 240V compatible
- 15A max load
- Touchscreen display
- Large modern display
- WiFi & app control (iOS / Android)
- Alexa & Google Home support
- Energy usage reports
Specifications
Identity
How DITRA-HEAT Works in 4 Steps
1. Install the membrane
Bond DITRA-HEAT to your substrate with unmodified thinset. Works over concrete, plywood, or OSB subfloors.
2. Snap in the cable
Run the DITRA-HEAT-E-HK cable between the studs at 3″ spacing. No mesh, no staples, no plywood overlay.
3. Tile right over it
Apply thinset and set tile, stone, or LVT directly on the studs. The membrane stays as your waterproof, uncoupled layer.
4. Set your thermostat
Wire the included floor sensor to any DITRA-HEAT thermostat — basic, touchscreen, or WiFi smart — and you’re heating.
Engineered Layer by Layer
